MK5614
| 組型番 | コネ クタ 形状 |
プラグ側型番 | ボディ側型番 | 適用電線（sq） | 適用 圧着 端子 |
端子 ねじ サイズ |
||
|---|---|---|---|---|---|---|---|---|
| プラグ ボディ セット型番 |
2 C T |
2 P N C T |
V C T |
|||||
MK5608 |
2P 15A 125V  |
MP2518 |
MC2608 |
0.75 ～ 2 |
2 | 2 | 0.75sq 1.25sq → R1.25-3.5 2sq → R2-3.5 |
M3.5 |
MK5609 |
2P 20A 250V  |
MP2512 |
MC2609 |
2 3.5 |
3.5 | 3.5 | 2sq → R2－4 3.5sq → R3.5－4 |
M4 |
MK5611 |
2P 30A 250V |
MP2514 |
MC2611 |
3.5 5.5 |
5.5 | 5.5 | 3.5sq → R3.5－5 5.5sq → R5.5－5 |
M4.5 |
MK5624 |
接地2P 15A 125V  |
ME2542 |
ME2624 |
1.25 2 |
2 | 2 | 0.75sq 1.25sq → R1.25-3.5 2sq → R2-3.5 |
M3.5 |
MK5625 |
接地2P 15A 125V |
ME2543 |
ME2625 |
0.75 | 1.25 2 |
1.25 2 |
0.75sq 1.25sq → R1.25-3.5 2sq → R2-3.5 |
M3.5 |
MK5628 |
接地2P 15A 250V  |
ME2546 |
ME2628 |
1.25 2 |
2 | 2 | 0.75sq 1.25sq → R1.25-3.5 2sq → R2-3.5 |
M3.5 |
MK5614 |
3P 15A 250V  |
MP2519 |
MC2614 |
1.25 2 |
2 | 2 | 0.75sq 1.25sq → R1.25-3.5 2sq → R2-3.5 |
M3.5 |
MK5610 |
3P 20A 250V |
MP2513 |
MC2610 |
2 3.5 |
3.5 | 3.5 | 2sq → R2－4 3.5sq → R3.5－4 |
M4 |

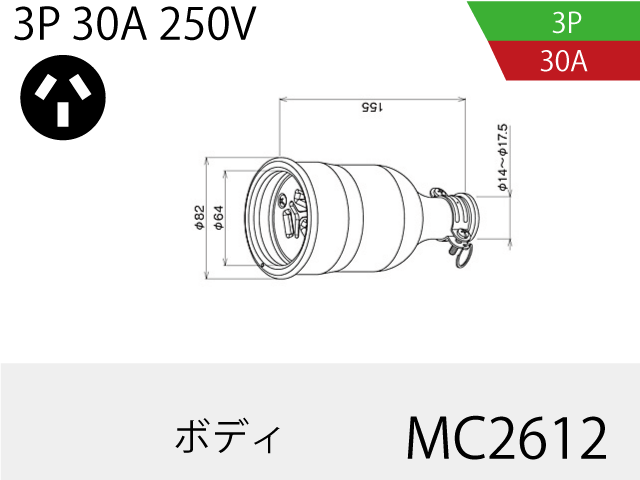

MK5612 |
3P 30A 250V |
MP2515 |
MC2612 |
3.5 5.5 |
5.5 | 5.5 | 3.5sq → R3.5－5 5.5sq → R5.5－5 |
M4.5 |
MK5620 |
接地3P 15A 250V  |
MP2536 |
MC2620 |
1.25 2 |
2 | 2 | 0.75sq 1.25sq → R1.25-3.5 2sq → R2-3.5 |
M3.5 |
MK5615 |
接地3P 20A 250V |
MP2520 |
MC2615 |
3.5 5.5 |
5.5 | 5.5 | 3.5sq → R3.5－4 5.5sq → R5.5－4 |
M4 |
MK5623 |
接地3P 30A 250V |
MP2540 |
MC2623 |
5.5 8 |
8 | 5.5 8 |
5.5sq → R5.5－5 8sq → R8－5 |
M4.5 |
